Welcome to Jinniu electric
Service Hotline:Lynn:+86 13273771392 Joe:+86 18737713145

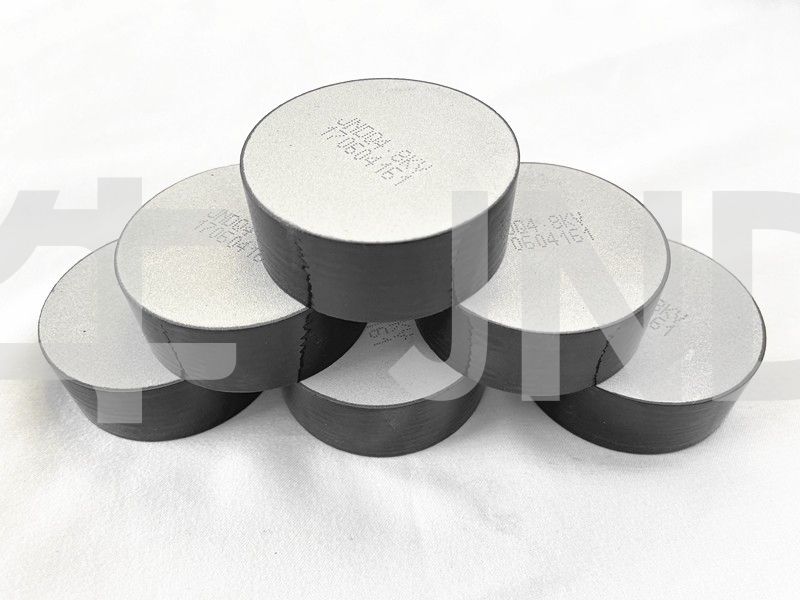

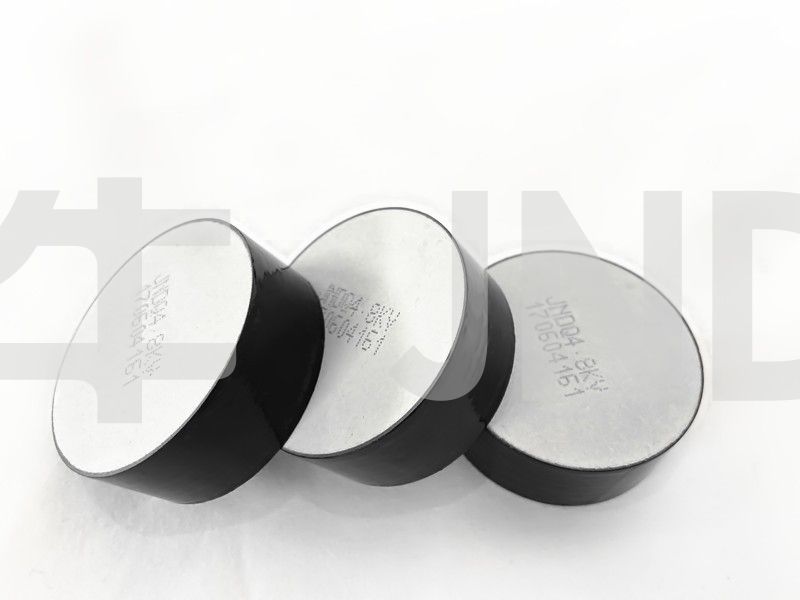

DH Type Metal Oxide Varistor
D36.5*H20
Product Description



SpecificationDiameterThicknessD.C. reference voltage (U1mA)Leakage current under 75%U1mA Max. ratio of residual voltage    (8/20us)Current impulse withstand capabilityRecommended rated voltage  Maximum energy absorption capacity        Recommended continuous operating voltage
4/10us 2ms
mmmmkVuAat 5kAkAAkVkJ/kVrkV
MOV36.5×2036.5±0.520±0.54.0-4.8<101.8810035033.22.4
MOV36.5×2436.5±0.524±0.55.0-5.8<101.881003503.83.23
MOV36.5×3036.5±0.530±0.56.2-7.0<101.881003504.53.23.6
MOV42×2042±0.520±0.54.0-4.8<101.8111040033.492.4
MOV42×2442±0.524±0.55.0-5.8<101.811104003.83.493
MOV42×3042±0.530±0.56.2-7.0<101.811104004.53.493.6

 Product features:

  2 spray granulator

  40m the longest kiln in China

  Certification: ISO9001 &amp; 14001 &amp; CQC, etc

  Fine all aluminum electrode

  Over voltage and high current withstand capacity

  Low leakage current (under continuous operating voltage)

  High quality nonlinear characteristics

  Comply with GB / IEC / IEEE and other standards

  Resistor can be connected in series flexibly

  Resistor 100% fully aged
